Compatible with the PMU-16, PMU-16 DL, and PMU-24 DL

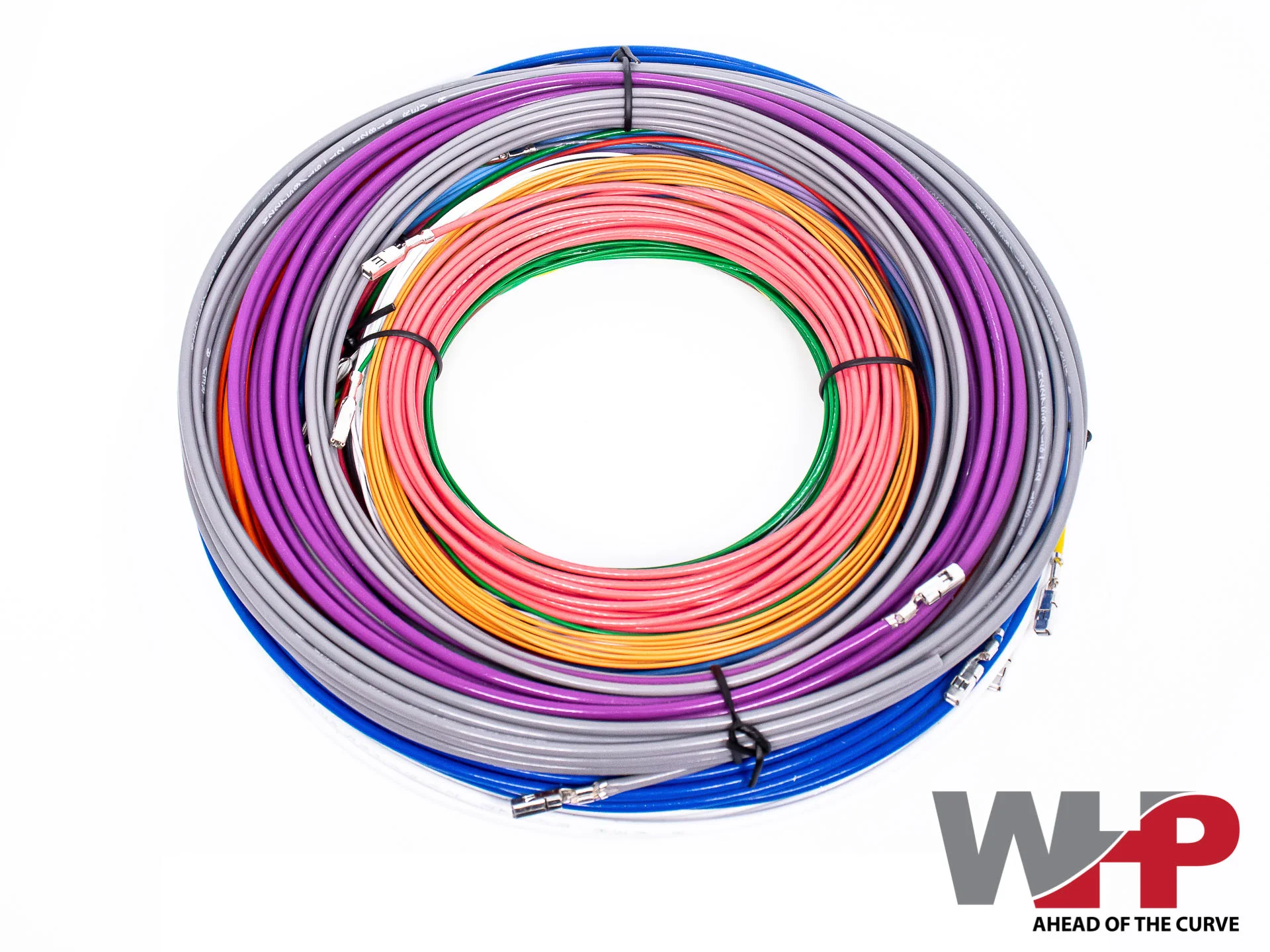

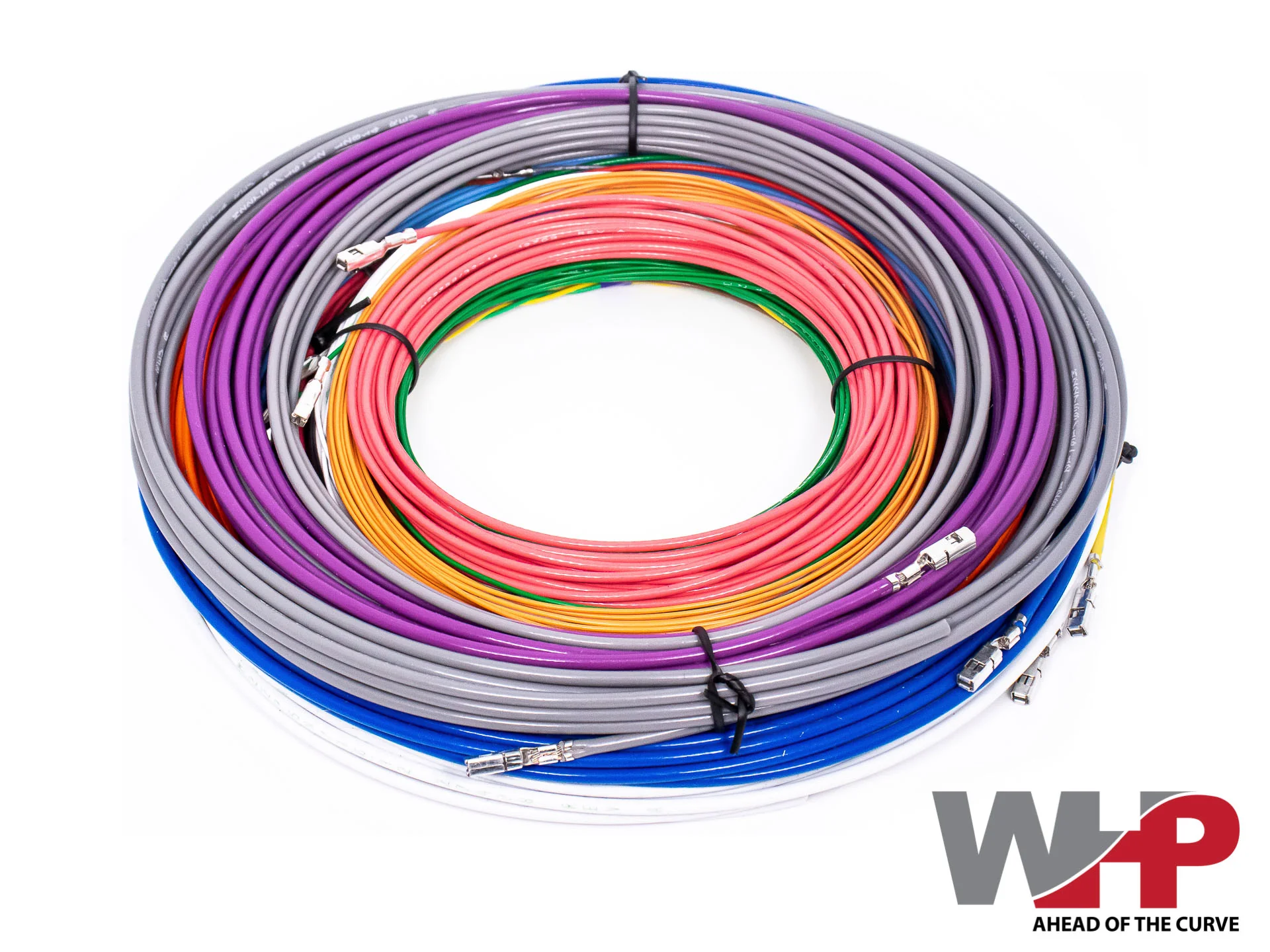

Contains the following wire crimped to PMU Terminals.

Note: Due to the ongoing shortage of Tefzel wire the colors in your Flying Lead Harness may differ from this list.

Small Terminal (16 feet)

• M22759/32-22-⅘  Green/Yellow
• M22759/32-22-5 Green
• M22759/32-22-9 White
• M22759/32-22-3 Orange
• M22759/32-22-6 Light Blue
• M22759/32-22-8 Gray
• M22759/32-22-1 Brown
• M22759/32-20-1 Brown
• M22759/32-18-2 Red

Small Terminal High-Current (16 feet)

• M22759/32-16-2 Red
• M22759/32-16-5 Green
• M22759/32-16-6 Blue
• M22759/32-16-8 Gray
• M22759/32-16-7 Purple

Large Terminal High-Current (16 feet)

• M22759/32-14-4 Yellow
• M22759/32-14-3 Orange
• M22759/32-14-2 Red
• M22759/32-12-4 Yellow
• M22759/32-12-9 White
• M22759/32-12-6 Blue

Large Terminal High-Current (12 feet)

• M22759/32-14-8 Gray
• M22759/32-12-7 Purple
• M22759/32-12-5 Green
• M22759/32-12-8 Gray
